Setup network for a Small/Home office (Default Gateway, DNS,DHCP)

Summary

In this article I am going to walk you through the steps involved in setting up a network for a Small/Home office (SOHO). The topics I will cover in this article are

1. How to configure a Default Gateway (DG)
2. How to configure DNS services
3. How to configure DHCP services
4. Utilize VMWare and Ubuntu

I plan to use VMWare workstation Pro (version: 12) and Ubuntu (version: 16.04) for configuring the network, but you can use any other virtualization software and Linux distribution to do the same.  I am going to Configure Ubuntu to perform the following roles

1. Default Gateway
2. DNS Server
3. DHCP Server
4. Workstation

Software Used

1. Ubuntu 16.04
2. VMWare Workstation 12 Pro

Assumptions

1. You are familiar with Linux/UNIX commands.
2. If you are using other Linux distributions then some of the commands, packages and/or directory/file names will be different, however, this article will still help you with the concept of configuring a SOHO office.
3. You are familiar with virtualization basics (VMWare to be specific)
4. You have “sudo” access to log in as “root” to execute the Linux commands mentioned in this article. I am not going to prepend “sudo” for any of the Linux commands mentioned below as that’s implied.
5. ipv6 is disabled across the network. I decided to do that to simply the article topic discussion.

Architectural Diagram



I plan to co-located the DNS Server and DHCP server on same Ubuntu Virtual Machine (VM) and then have one Ubuntu VM for Default Gateway and one Ubuntu VM for client workstation.

NOTE: The DNS and DHCP server need not be co-located. I am doing it to save time.

General Comments

In the following sections I will provide detail steps to configure Default Gateway, DNS and DHCP Server shown in the architectural diagram.

Configure Default Gateway

I plan to configure an Ubuntu machine to be the default gateway, the steps to do that are mentioned below



The machine has two interfaces “ens33” and “ens38”. “ens33” is connected to the internet and “ens38” is connected to the private home/office network. The “IP” address assigned to ens38 is a “static” IP and is shown below



The “IP” address assigned to ens38 is a “dynamic” IP except the DNS Server part which is pointing to our local DNS Server (IP: 10.0.1.2) and is shown below

NOTE: Interface “ens33” is actually a virtual network card which is getting its private IP: 192.168.164.174 from the VMWare’s DHCP server hence the non-routable private class C address. In the real physical network, “ens33” will be connected to the edge router (possibly via a network switch) with the edge router getting its IP from the ISP, and a firewall device between the default gateway and the edge router.

• Let’s enable NATing with the following command

iptables -t nat -A POSTROUTING -o ens33 -j MASQUERADE


The above command will enable Masquerading on external interface “ens33”. What that means is for all private network IP subnet – 10.0.1.0/24, it will do NATing to expose the IP packets as one external IP address assigned to interface “ens33”

• Let’s now allow packet forwarding from ingress interface “ens38” to egress interface “ens33” using the following command


iptables -A FORWARD -i ens38 -o ens33 -j ACCEPT

• Let’s now allow packet forwarding from ingress interface “ens33” to egress interface “ens38” for only packets that are either “Established” or “Related”. Basically what it means is that you cannot have “new” states starting from external interface ens33 to internal private network interface “ens38”.

iptables -A FORWARD -i ens33 -o ens38 -m state --state RELATED,ESTABLISHED -j ACCEPT



NOTE:  We need to have this firewall rule to protect the internal network from anyone in the external public network from initiating a “new” session.

• Let’s install the package “iptables-persistent”, this package depends on “netfilter-persistent” package and will install that package as well

apt-get install iptables-persistent

The “netfilter-persistent” is the command that you then use to save and load iptables rules once changed. “netfilter-persistent” is a service that is managed by “systemd” daemon and will load files from “/etc/iptables/” for rules that are saved there. The “/etc/iptables/” folder contains the rules that are saved by “netfilter-persistent” command options. File “rules.v4” contains rules for ip4 and file “rules.v6” contains rules for ip6.

• Let’s enable ip forwarding by editing the “/etc/sysctl.conf” file and entering the following line

net.ipv4.ip_forward=1



Enabling ip forwarding by editing the “/etc/sysctl.conf” file will persist “ip forwarding” across reboots. If you want to just do it for testing purposes you can do the same by doing the following



echo 1 > /proc/sys/net/ipv4/ip_forward

This will not persist across reboots.



Configure DNS Server

I plan to configure an Ubuntu machine to be the DNS Server, the steps to do that are mentioned below

• Let’s install DNS by executing the following command

apt-get install bind9

• Once the bind9 package is installed then you can configure the following files for DNS services (all the files listed below are found or created under “/etc/bind/” directory)

i) named.conf.local – for any local configuration like Forward/Reverse Zones do the configuration in this file instead of “named.conf”. Following is the setting for my SOHO network

A few details about the above configuration
a) Section 1 defines the Forward zone for domain “myhome.local” and
b) Section 2 defines the Reverse Zone for 10.0.1.0/24 subnet, which is my private network



ii) db.myhome.local – this file can be named anything but needs to be referenced in the “Section 1” of “named.conf.local” file, Following is the setting for my SOHO network
Forward Zone

A few details about the above configuration
a) Forward Zone file is needed to allow “name-to-ip” lookups
b) The DNS Server name is “mainsrv01”
c) The DNS Server IP is “10.0.1.2”



iii) db.10 – this file can be named anything but needs to be referenced in the “Section 2” of “named.conf.local” file, Following is the setting for my SOHO network
Reverse Zone

A few details about the above configuration
a) Reverse Zone file is needed to allow “ip-to-name” lookups
b) We need to have PTR records for every entry of “A” (or ”AAAA” for ipv6) records in the forward zone file

iv) named.conf.options – This is the file where you can define additional configuration for the DNS Server. Following is the setting for my SOHO network

A few details about the above configuration
a) I have defined an Access Control List (acl) called “trusted” that can be used later on in the section “options” to restrict recursive looks up to be allowed for localhost (loopback adapter) and for machines that are connected to local network (our private 10.0.1.0/24 network – done via “localnets”)
b) The acl is extremely important as it’s a security measure against open ended DNS and is used to prevent someone from outside the private 10.0.1.0/24 network from using this DNS server to send recursive queries. Again this is not foolproof but one step towards making your network foolproof.
c) I have also disabled ipv6 to make configuration simpler.

 v) named.conf – Do not make changes in this file to include zones as they are defined in the “named.conf.local” file. For SOHO office network I did not change anything in this file.

The IP address for the DNS server is also static IP and is shown below

Configure DHCP ServerI plan to configure an Ubuntu machine to be the DHCP Server, the steps to do that are mentioned below

• Let’s install DHCP by executing the following command

apt install isc-dhcp-server

• Let’s configure the interface on which DHCP server will listen for DHCP clients. For that we will edit the “/etc/default/isc-dhcp-server” file and add the following line to it

INTERFACES="ens33"

On my Ubuntu machine there is only one network card (NIC) named “ens33”.

• Now let’s configure the DHCP settings that DHCP server will send to DHCP clients. For that we will edit the “/etc/dhcp/dhcpd.conf” file and add the following line to it

The above settings define
a) Default lease time
b) Maximum lease time
c) The range of IP pool the DHCP server will use to assign an IP to the client
d) Default gateway
e) Default DNS server
f) Domain name

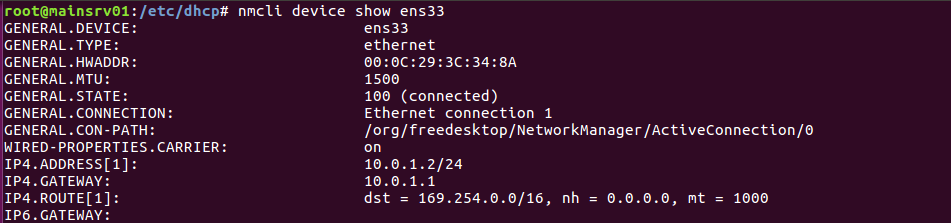

The IP address for the DHCP server is same as the DNS Server as I have co-located the two servers on same Ubuntu VM machine

Configure Workstation

The DHCP server will provide the dynamic information for the network cards of all workstations in the private 10.0.1.0/24 network therefore there is really nothing you need to do for configuring the workstation network cards. One thing you have to do for your domain “myhome.local” is that you will have to change the order of hostname resolution in the “/etc/nsswitch.conf” file as shown below and you only need to do that because your domain ends with “.local” suffix, the default name resolution configuration in “/etc/nsswitch.conf” file rejects any domain that has the “.local” suffix as shown below

#hosts:          files mdns4_minimal [NOTFOUND=return] dns

hosts:          files dns

“mdns4_minimal [NOTFOUND=return]” is the one that rejects name-to-ip lookups for domain that end with “.local”. That’s the only thing you need to remove from the order as shown in the second line above (first line is commented out with “#”).

The IP address for the Workstation is dynamic IP and is shown below





The DHCP server dynamically assigns the following to the workstation
a) IP (one of the IP from IP range: 10.0.1.100-10.0.1.200)
b) Default Gateway (10.0.1.1)
c) DNS Server (10.0.1.2)
d) Domain Name (myhome.local)

I also started a Windows 7 VM as a workstation just for fun. The dynamic IP address for this workstation is shown below

Miscellaneous things

1. The firewall shown in the Architectural Diagram is something that you should consider buying for your SOHO office (get a hardware device for firewall). In this article I just rely on the Linux “iptables” firewall rules on the Ubuntu machine that acts as a default gateway for the private 10.0.1.0/24 network. Also between my private network and public network I have a router. So there is some level of protection as my edge device (which is my default gateway) is not directly connected to my ISP but is connected to my Router which is then connected to my ISP. That is the reason why the external interface “ens33” on my default gateway has a private non-routable class C address 192.168.164.174 (a 192.168.164.0/24 subnet IP address)
2. As I am using VMWare Workstation Pro to configure all the VM, one thing you need to be aware of is that all my private 10.0.1.0/24 network VM’s are in the “host-only” network of my VMWare Workstation Pro. And because I am using my local DHCP server I have disabled DHCP service for the “host-only” network in my VMWare Workstation Pro as shown below

This is important to disable, you do not want two DHCP servers in your private network.

Conclusion

I hope this article helped you set up your SOHO office network. Enjoy and have fun.
